Oji F-Tex | ALPHAN : Biaxially oriented polypropylene film

Oji’s Alphan is a biaxially oriented polypropylene film made from polypropylene resin.
We have prepared an extensive line-up of products to satisfy all users.

General type

Excellent in terms of transparency, waist strength and suitability for secondary processing, it is a general-purpose biaxially oriented PP film of a general grade.

Excellent in terms of waist strength and suitability for secondary processing, it is a general-purpose anti-static type of biaxially oriented PP film.

↑page top

Composite type

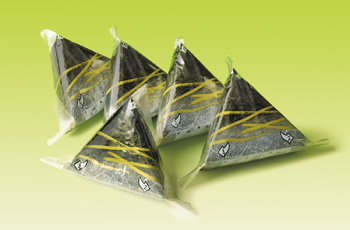

In addition to the conventional type that has undergone low-temperature heat-sealing on one side, we have also newly added a type of biaxially oriented polypropylene film that has a mat finish on one side and has undergone low-temperature heat-sealing on the other. Please use it for applications like as an alternative to coating parts, or for pillow packaging.

In addition to the conventional type that has undergone heat-sealing on both sides, we have also newly added a type of biaxially oriented polypropylene film that has a mat finish on one side and has undergone heat-sealing on the other.

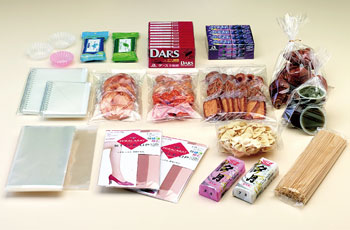

Please use it for applications like overlapping or for food packaging.

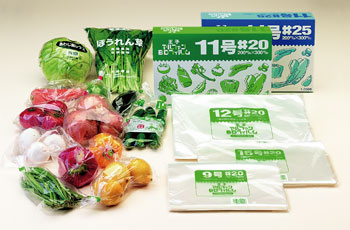

Can be used to package foods that contain moisture such as fruits and vegetables without experiencing any fogging, so that the contents can be clearly seen and excellently displayed. It is a biaxially oriented polypropylene film that has also been given new anti-fogging properties.

↑page top

* Click on each classification to see in one go the Standard Properties Chart for each classification as a PDF file.
* Click the thickness (μm) to see the respective Standard Properties Chart as a PDF file.

General type

Classification	Type	Product name	Thickness (μm)	Corona treatment	Applications	Features
Alphan P (Plain)	PY	PY-001	50	None	Industrial, albums	Features
		PY-002	50
	PU	PU-002	40	None	Industrial, bag making	Transparency
	PK	PK-002	30	None	Industrial	High transparency Fish-eye defect management, ultra-high transparency
			40
Alphan S (Anti-static)	SY	SY-101	50	One side (inner side)	Part coating, printing	Anti-static
			60
		SY-201	50	Both sides	Industrial
			60
		SY-202	60
	SS	SS-121	20	One side (inner side)	Printing, laminating
		SST-121	20
		SS-221	20	Both sides	Printing, laminating, print laminating
	SD	SD-101	25	One side (inner side)	Bag making, printing, laminating	Anti-static properties, suitable for side seal
			30
			40
		SDT-101	25
			30
			40

↑page top

Composite type

Classification	Type	Product name	Thickness (μm)	Corona treatment	Applications	Features
Alphan HS (Heat-sealed on one side)	HS	HS-101	25	One side (inner side)	Automatic wrapper	Suitable for low-temperature heat-sealing (one side)
			30
			40
			50
Alphan NHW/OHW (Heat-sealed on both sides)	NHW	NHW-102F	25	One side (inner side)	Overlapping	Suitable for heat-sealing (both sides)
		NHW-102	30
	OHW	OHW-002	25	None	Food packaging bags	Mat (both sides), suitable for heat-sealing (both sides)
Alphan BD/HW (Anti-fogging)	BD	BDW-224	20	Both sides	Bags for fruit and vegetables	Anti-fogging (both sides), suitable for side sealing
			25
			30
		BDH-224	25	Both sides	Automatic wrapper for fruit and vegetables	Anti-fogging (both sides), suitable for side sealing(one side)
			40
	HW	HW-101	25	One side (inner side)	Food packaging bag	Anti-fogging (one side), suitable for low-temperature heat sealing (one side)

↑page top
